Waveshare 2-DOF Pan-Tilt HAT for Raspberry Pi Series Board Light Intensity Sensing Control Camera Movement I2C Interface
4.5 (105 items)
Limited Time SaleUS$16.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217009815 | Release Date | 2026/04/19 | List Price | US$10.80 | Model Number | 217009815 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

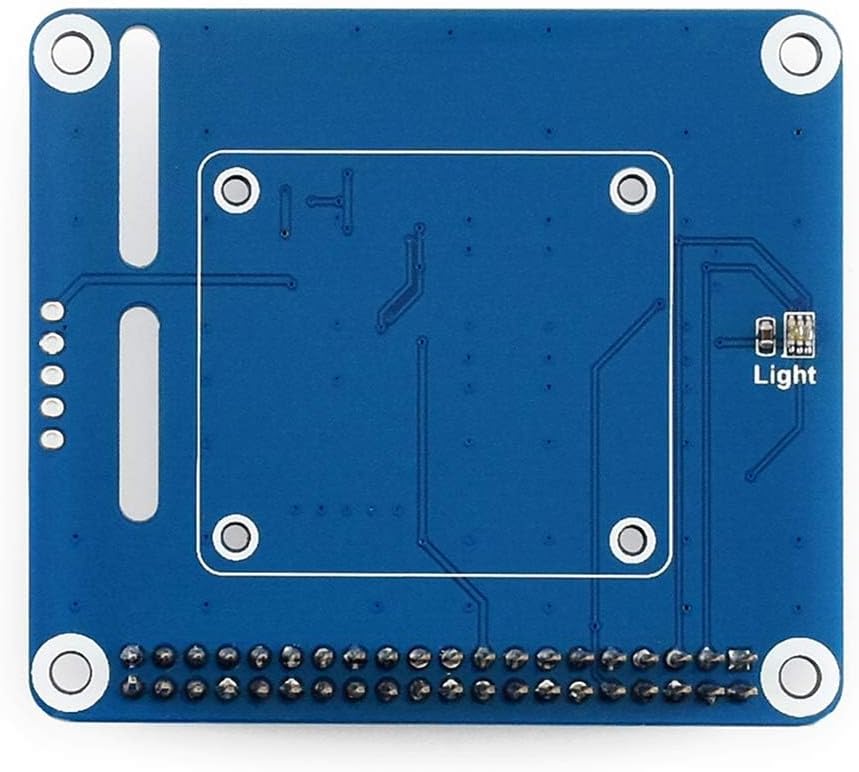

Overview This is a 2-DOF pan-tilt kit designed for Raspberry Pi. With onboard PCA9685 PWM chip and TSL2581 ambient light sensor, it allows the Pi to control camera movement and sense light intensity through I2C interface. Features Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ I2C interface, only 2 pins are required for moving and light intensity sensing Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module Onboard voltage level translator, compatible with 3.3V/5V operating voltage Specific acrylic board to fix the Raspberry Pi camera, make it easy to install Comes with development resources and manual (demo code, assembly guide) Specifications PWM driver: PCA9685 PWM resolution: 12-bit Ambient light sensor: TSL2581FN Ambient light resolution: 16-bit Communication interface: I2C Operating voltage: 3.3V/5V Dimension: 56.6mm x 65mm Package Content 1.Pan-Tilt HAT x1 2.2-DOF pan-tilt kit x1 3.SG90 servo x1 4.MG90S servo x1 5.Acrylic board x1 6.M2 screws pack x1 7.RPi screws pack (2pcs) x1
- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- I2C interface, only 2 pins are required for moving and light intensity sensing Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control
- Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module
- Onboard voltage level translator, compatible with 3.3V/5V operating voltage Specific acrylic board to fix the Raspberry Pi camera, make it easy to install
- Comes with development resources and manual (demo code, assembly guide)
| UPC | 614961954144 |
|---|---|
| Brand | waveshare |
| Model Name | Pan-Tilt HAT |
| Item Weight | 0.11 Kilograms |
| Manufacturer | Waveshare |
| Model Number | Pan-Tilt HAT |
| Mfr Part Number | Pan-Tilt HAT |
| Processor Count | 1 |
| Total Usb Ports | 4 |
| Operating System | Raspberry Pi OS |
| Compatible Devices | Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi Zero WH, Raspberry Pi 2B, Raspberry Pi 3B, Raspberry Pi 3B+ |
| Wireless Compability | Infrared |
| RAM Memory Technology | LPDDR2, LPDDR4 |
| Connectivity Technology | I2C |
| Memory Storage Capacity | 1 TB |
